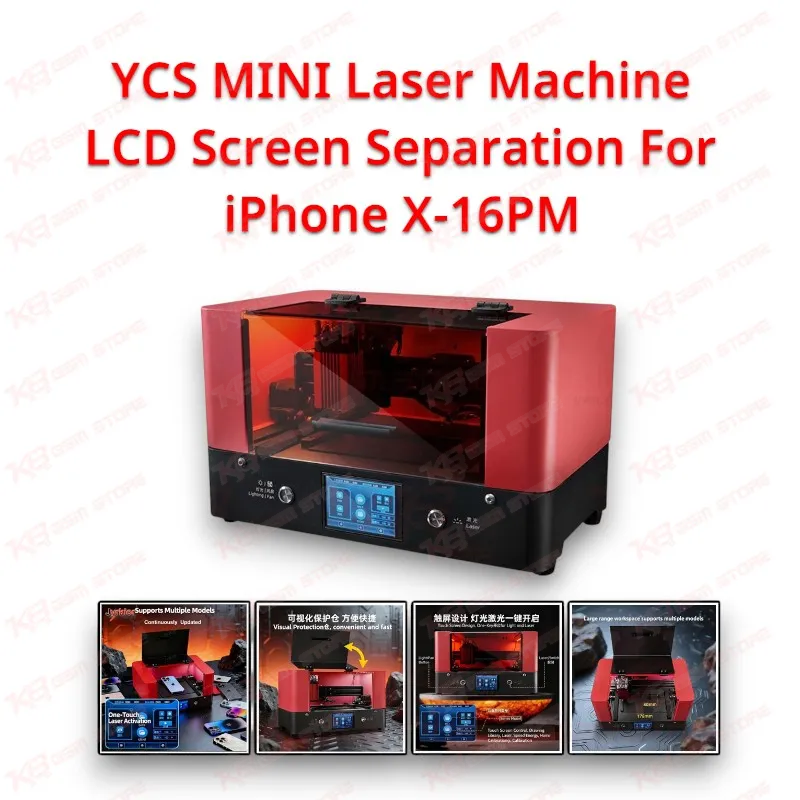

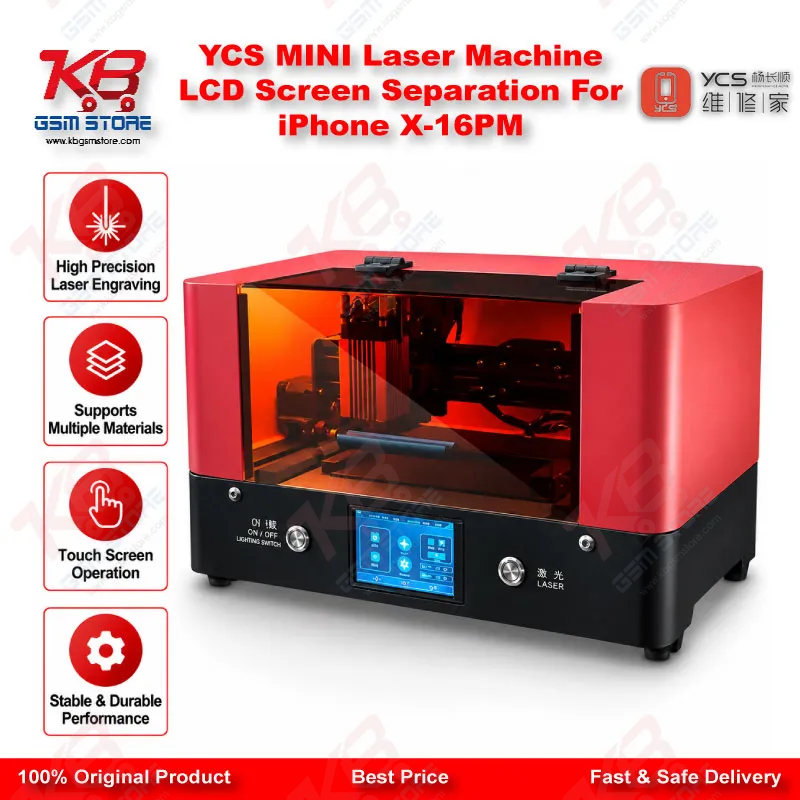

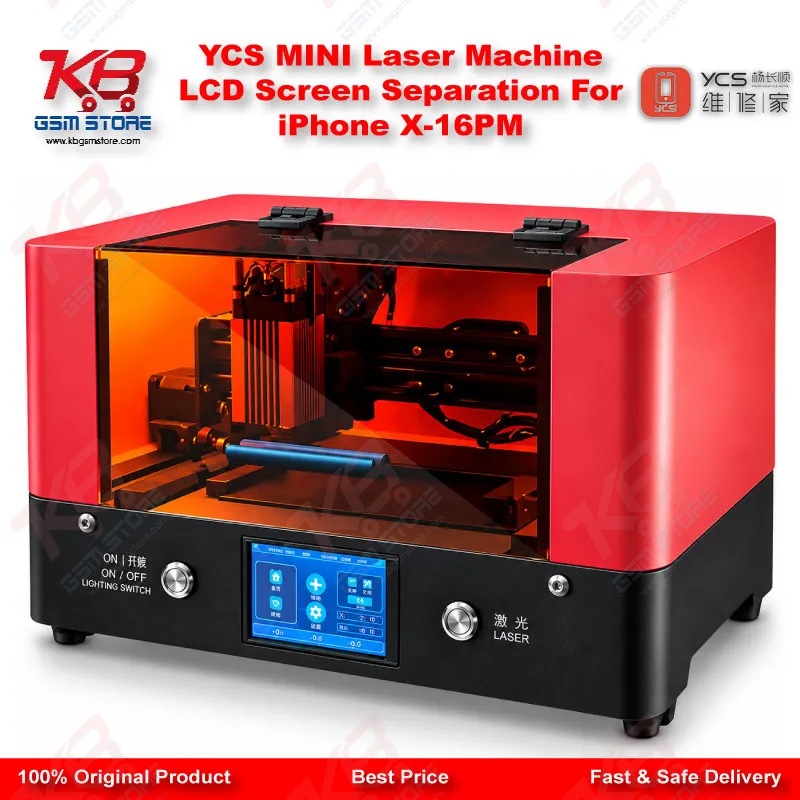

When a cracked iPhone lands on your repair bench, the slowest part of the job often comes before any new part goes in: getting the old adhesive and frame off without hurting the display. The YCS MINI Laser Machine LCD Screen Separation For iPhone X-16PM handles that step with an infrared laser instead of heat, wire, and force. You load the screen or the back housing, pick the model on the touchscreen, and the laser traces the adhesive line that holds the bracket or the rear glass in place. For Pakistani repair shops that turn around refurbished iPhone screens and back glass jobs every day, this compact unit turns a slow, risky manual task into a repeatable bench routine.
Traditional separation relies on a heating plate, a cutting wire, and a lot of patience. Push too hard on an OLED panel and you end up with a green line, a black spot, or a torn flex, and a simple frame swap becomes an expensive display problem. Experienced technicians know this pain well, because one slip on a 13 Pro Max or 15 Pro panel can wipe out the profit of an entire week of small jobs. The YCS Mini removes most of that risk. Its infrared laser follows a pre-loaded drawing for each supported iPhone model and weakens the bond exactly where the adhesive sits. Once the pass finishes, the bracket or back glass lifts away with light effort, and the panel underneath never takes the prying force that cracks screens during manual work.
Control runs through a visual touchscreen, so you never need a laptop, drivers, or separate software on the bench. The built-in drawing library holds the outlines for supported iPhone models, and the same screen lets you adjust laser parameters, set positioning, and run calibration. A TF card slot lets you load updated drawings whenever new outlines arrive, and the machine keeps working fully offline. For a shop that supplies refurbished iPhone parts across Lahore, Karachi, or Islamabad, offline operation matters: an internet drop or a load-shedding restart never blocks your job queue.
Positioning decides the quality of every laser pass, and YCS builds the Mini around a strong magnetic stop design that seats the part in the same spot every time. You place the screen or back cover against the stops, confirm the model on the touchscreen, and start the run. Consistent placement keeps the laser path on the adhesive track instead of drifting onto glass edges or the camera ring area. When you process ten or twenty back glass jobs in a single shift, that repeatability saves more time than any single speed figure on a spec sheet.

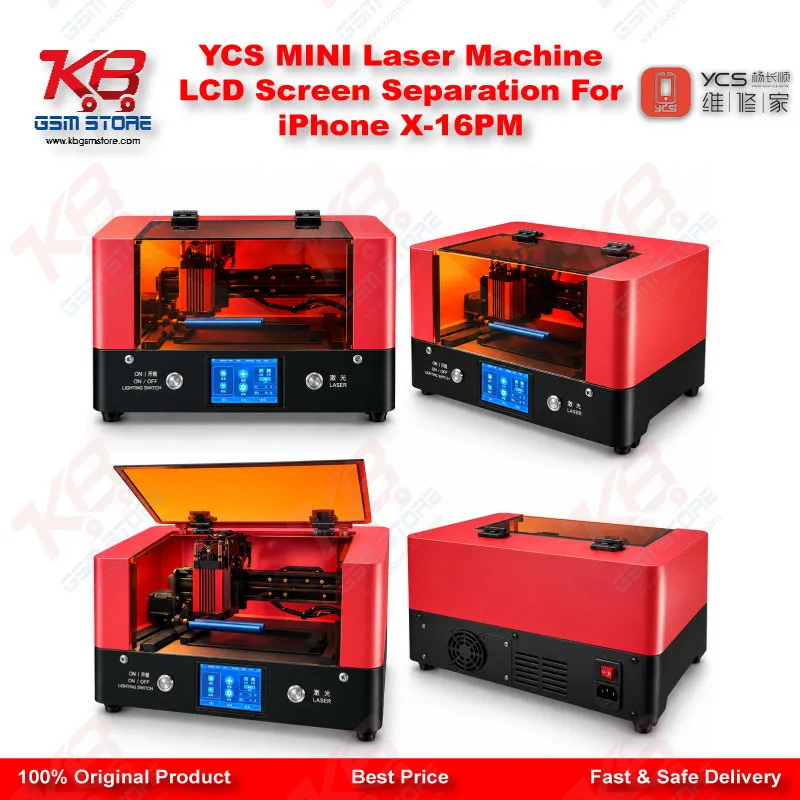

Laser work needs a closed, visible workspace, and the Mini gives you exactly that. A transparent protective compartment lets you watch the beam progress while the working area stays enclosed. A rear fan pulls heat away from the internals for stable operation through long sessions, and one-touch controls switch the light, fan, and laser independently. Keep your shop ventilated and pair the machine with a smoke fume extractor, since burning adhesive releases fumes that you do not want sitting over your bench or in your lungs.
On the model side, the YCS Mini covers two separate jobs. For back cover glass removal, the published support list runs from iPhone 8 and 8 Plus through iPhone X, XR, XS, and XS Max, the full iPhone 11, 12, and 13 families, and iPhone 14 Pro and 14 Pro Max. For screen bracket removal, the list includes iPhone X, XR, XS, and XS Max, iPhone 15 Plus, 15 Pro, and 15 Pro Max, and the complete iPhone 16 lineup up to 16 Pro Max, along with older models from iPhone 6 to 8 Plus. YCS keeps adding models to the drawing library, so check the current drawing list before you accept a job on a model outside these ranges.
Getting clean results on day one takes only a few minutes of setup. Run the calibration routine from the touchscreen after you place the machine, and repeat it whenever you move the unit to a new spot on the bench. Start with a scrap back glass or an old screen to confirm that the laser track sits on the adhesive line for that model before you touch a customer device. Clean the working bed regularly, because glass dust and adhesive residue can push the part away from the magnetic stops. Small habits like these keep the laser path accurate and stop avoidable mistakes from turning a quick frame job into a damaged display.
Inside a full screen refurbishing workflow, the Mini sits at the start of the line. After laser separation of the bracket, you clean the old adhesive, inspect the panel under a microscope for hairline cracks or edge chips, and move on to frame bonding with a fresh bracket. For back glass jobs, the laser pass replaces the old routine of smashing the glass and scraping shards out of the housing, so the frame comes out clean and ready for new glass and adhesive. Round out the bench with a PCB holder or screen fixture for safe handling, a hot air station for camera and flex work during the same repair, and a vacuum screen separator machine if you also handle glass and OCA separation on curved Android panels.
For shop owners weighing the investment, the real value lies in turnaround and lower breakage rather than headline numbers. Every iPhone display you save from a careless pry job protects your margin, and every back glass job you finish in minutes instead of half an hour frees your technician for the next phone in the queue. The compact patented body takes little counter space, which suits busy shops in crowded markets like Hall Road and Saddar where every inch of bench counts. Pick the 220V version for standard Pakistani mains supply. If your volume eventually outgrows a mini unit, step up to a full-size laser separating machine with a larger working bed. Check the current YCS Mini laser machine price in Pakistan at KB GSM Store and bring laser-accurate separation to your repair bench.
