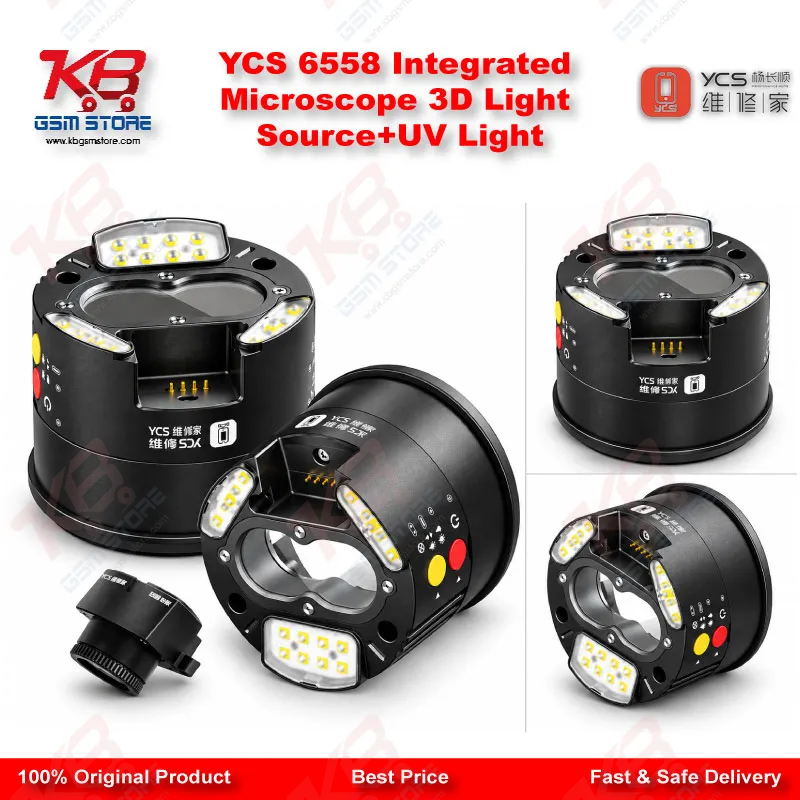

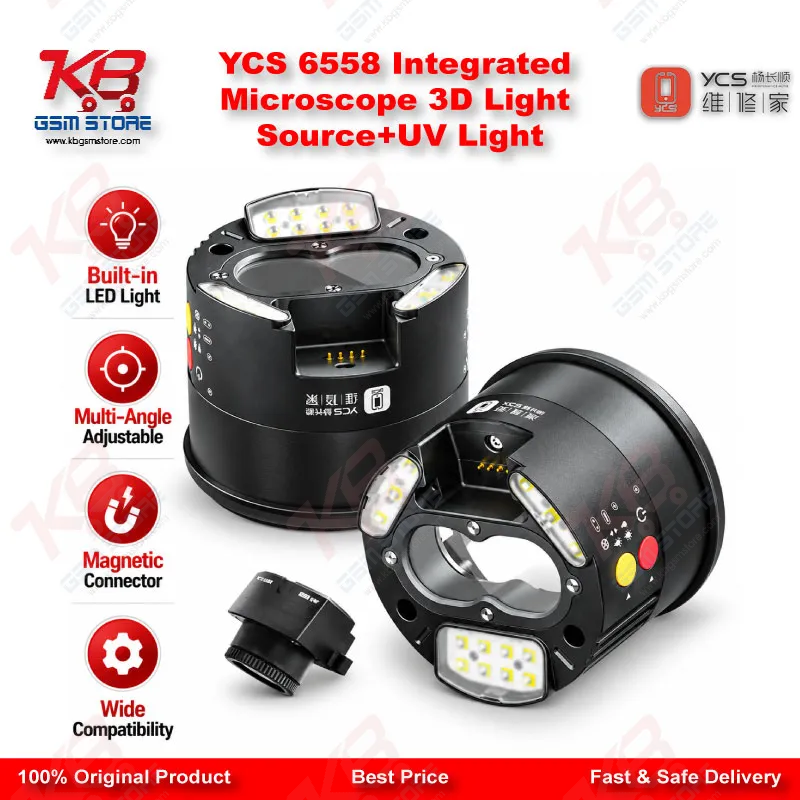

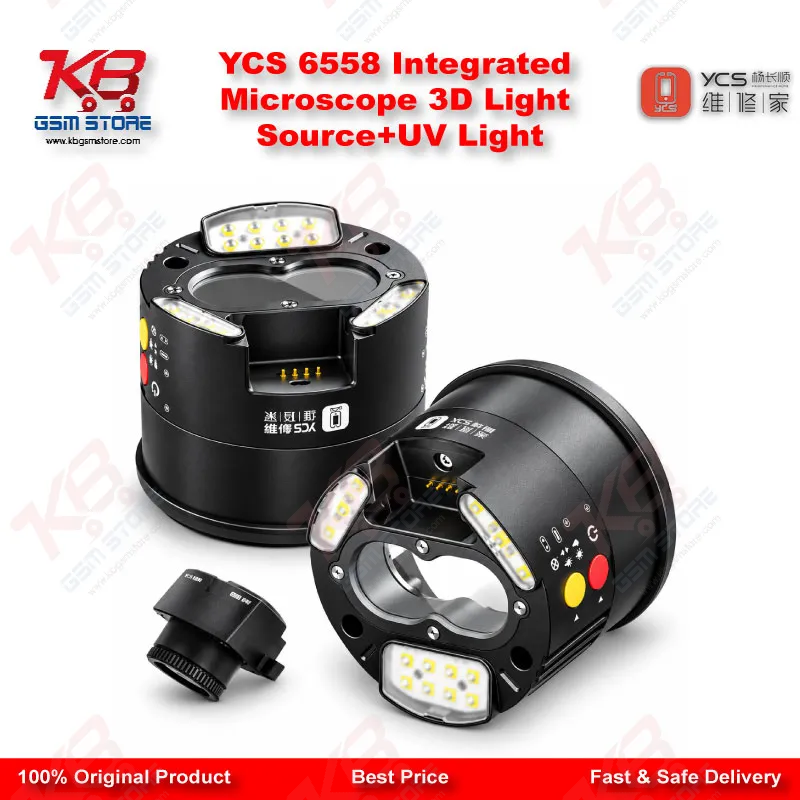

YCS 6558 Integrated Microscope 3D Light Source+UV Light

The YCS 6558 Integrated Microscope 3D Light Source+UV Light solves the lighting problem every micro soldering technician fights on the repair bench. Under a stereo microscope, a standard ring light throws flat glare across shiny BGA balls and leaves shadows beside tall components, and you end up tilting the board just to see a lifted pad. This integrated module mounts on YCS 6558 series microscopes and combines three jobs in one housing: high-CRI illumination, 3D coaxial laser positioning, and a 405 nm UV curing lamp. The LED array delivers 95% color rendering, so you read true copper tones, spot burnt traces, and tell flux residue from corrosion without guessing. Brightness adjusts smoothly, which matters when you switch between inspecting a matte underfill layer and a reflective shield can. The lamp beads use a focused design that pushes light deeper into dense board areas, and the 3D coaxial positioning light reaches the work area along the optical axis, cutting the shadows that hide cracked solder joints around a PMIC or a charging IC. On a dead phone with a suspected short on the main rail, you get a clean view of every capacitor around the CPU before you even pick up the hot air. The UV lamp changes how you finish a job. After you rebuild a torn trace with jumper wire or re-lay a pad, you apply UV solder mask or UV glue and cure it right under the scope in seconds, without moving the board to a separate lamp and losing your alignment. The same lamp sets UV adhesive when you secure jumper wires on a board with a network issue or a charging issue, and it helps when you reinforce a reballed CPU edge or bond a flex connector area back into place. Because the curing light sits in the same assembly as your illumination, you see exactly where the UV lands. Heat management keeps the module reliable during full-day shifts. A built-in fan cools the LED array, so brightness stays stable and the housing stays comfortable next to your eyepieces during long reballing or IC change sessions. Type-C charging powers the unit for up to 8 hours of continuous use, which covers a full working day at a busy shop without running an extra power cable through your microscope stand. The module also carries expansion slots for an optional infrared thermal imaging camera and a cooling fan add-on. With a thermal camera attached, you trace short circuits by watching which component heats up when you inject voltage, a common first step on a dead phone or a board that hangs on logo after water damage. Since the thermal view, light, and UV share one space-optimized assembly, your bench stays uncluttered and you skip an extra stand. Fit is model-specific. YCS designed this light source for the YCS 6558 series, including the 6558X and 6558S trinocular stereo microscopes, and the QianLi Gorilla 6558 microscope. Confirm your microscope model before you order, because YCS limits compatibility to these models. For Pakistani repair shops already running a YCS 6558 scope, this upgrade takes your lighting well beyond the standard 144 LED ring light and adds curing and thermal expansion that a plain ring light never offers. Pair it with a quality hot air station, a fine-tip soldering station, a PCB holder, and a reballing kit to build a complete board-level setup. When you scale up further, a 4K microscope camera lets you record repairs and show customers the hardware fault before you quote a price. From display problem diagnosis to CPU reball work, the YCS 6558 Integrated Microscope 3D Light Source+UV Light gives your repair bench clearer vision, faster curing, and a direct path to thermal fault finding.
