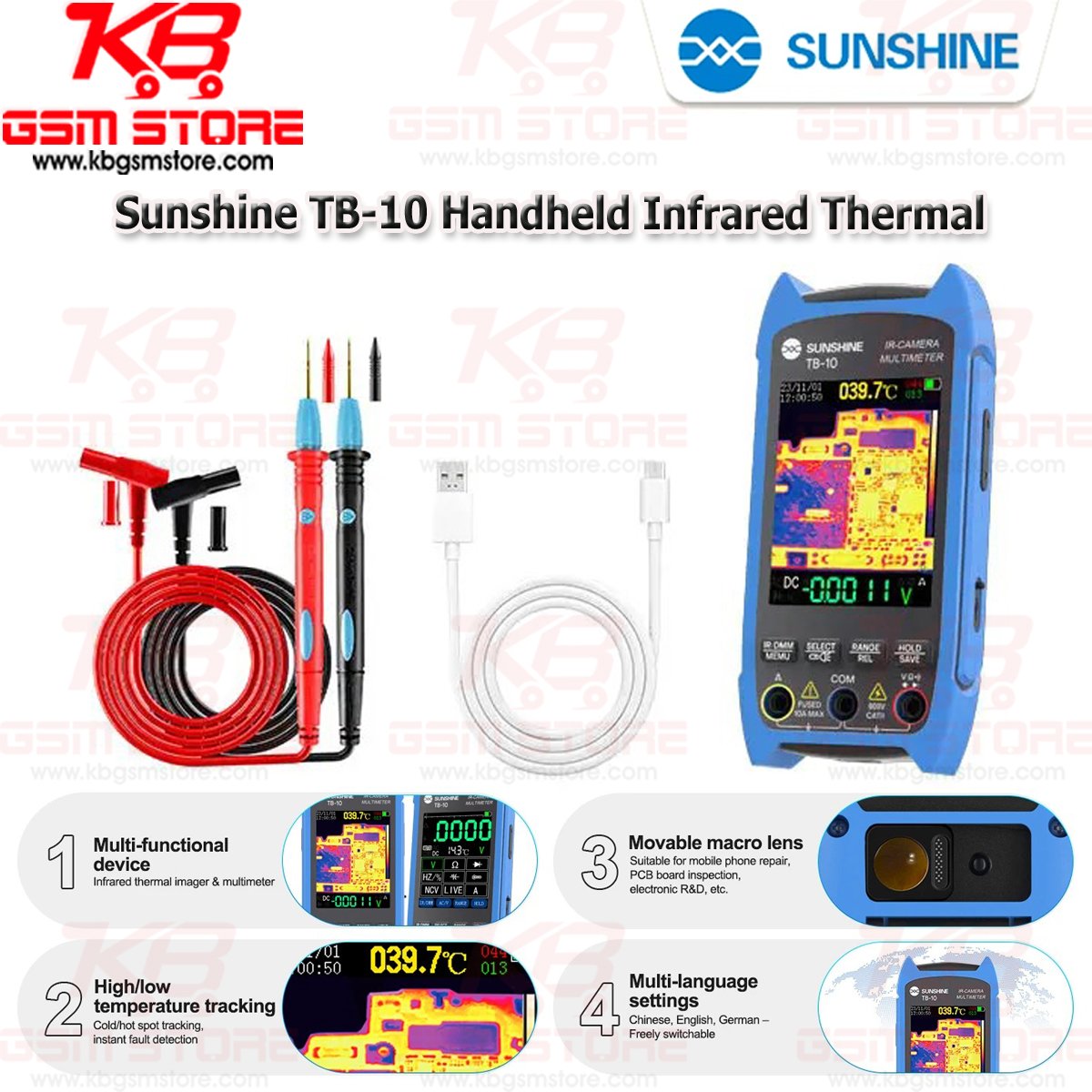

Sunshine TB-10 Handheld Infrared Thermal Imager + Multimeter for PCB Repair & Temp Measurement

Sunshine TB-10 Thermal Multimeter Best Price in Pakistan Only Available @ Official Web Link

Official Facebook

Features:

• TB-10 infrared thermal imaging, 96*96 ISR, 240*240 super-resolution, macro lens, free switching between three languages
• Full-screen Temperature Measurement HD Positioning: 96*96 ISR, 240*240 super-resolution detects multiple points simultaneously, the visual thermal imaging enables one-click fault localization
• Smart Auto-ranging: Accurate measurements for capacitors, diodes, resistance, current, voltage, continuity, etc.
• Multiple Color Modes: Multiple color modes. quick-switch: Iron Red/Rainbow/Fusion/White Heat/Red Heat
• Flexible Macro: Slide the macro lens left and right to switch freely, and you can see 1mm*1mm tiny details in the macro state, suitable for mobile phone repair, PCB motherboard detection, electronic research and development, and other application scenarios
• Handheld Design, Easy To Carry: It is both an infrared thermal imager and a multimeter, small in size, light in weight, and easy to carry
• Thermal Imaging Multimeter 2 In 1: Creative design of shortcut keys long/short, realizing more functional operations, small body with more comprehensive functions
• Live wire identification measurement: In multimeter mode. switch to the LIVE position to distinguish the neutral wire and the live wire
• Non-contact AC voltage sensing NCV: Sensitive sensing, interface prompts and accompanied by a beep, away from the risk of electric shock
• USB fast image reading: Data reproduction with computer, quick viewing of stored images, data reproduction, USB charging
• Type-C charging: Built-in removable 18650 lithium battery, long-lasting battery life, convenient and durable

Specification:

• Brand: SUNSHINE
• Product name: Handheld thermal imager
• Model: TB-10
• Product size: 134*64*28mm
• Net weight: 198g
• Display screen: 2.8-inch 240*320 resolution
• USB interface: Type-C USB
• Storage capacity: 7.5MB
• Image format: BMP file
• Battery: Removable 18650 lithium battery
• Storage temperature: -20~60℃(-4~140℉)
• Operating temperature: 0~50℃(32~122℉)
• Operating humidity: <85%RH (non-condensing)
• Sensor: Uncooled vanadium oxide (VOx)
• Image capture frequency: 25Hz
• Module output pixels: 240*240
• Display image resolution: 240*240
• Field of view (FOV): 50.0°(H)*50.°(V)/72.1°(D)
• Emissivity: 0.1~0.99 adjustable, default 0.95
• Temperature range: -20~550℃
• Mode: Automatic gain
• Color plate: Iron Red/Rainbow/Fusion/White Heat/Red Heat
• Temperature measurement emror:  ±2℃ or ±2℉
• Display temperature accuracy: 0.1℃ or 0.1℉
• DC maximum input voltage: 1000V
• AC maximum input voltage: 750V
• Maximum current measurement: 10A
• Resistance maximum measurement value: 99MΩ
• Capacitance maximum measurement value: 199.99mF
• Duty cycle measurement range: 0.1%~99.9%
• Diode measurement range: OV~3V
• Maximum resistance value of continuity detection: 199.90Ω
• Display digital: 19999 words updated about 3 times per second

Package includes:

• 1 x Thermal Imager Multimeter
• 1 x Type-C Cable
• 1 x Test Lead
